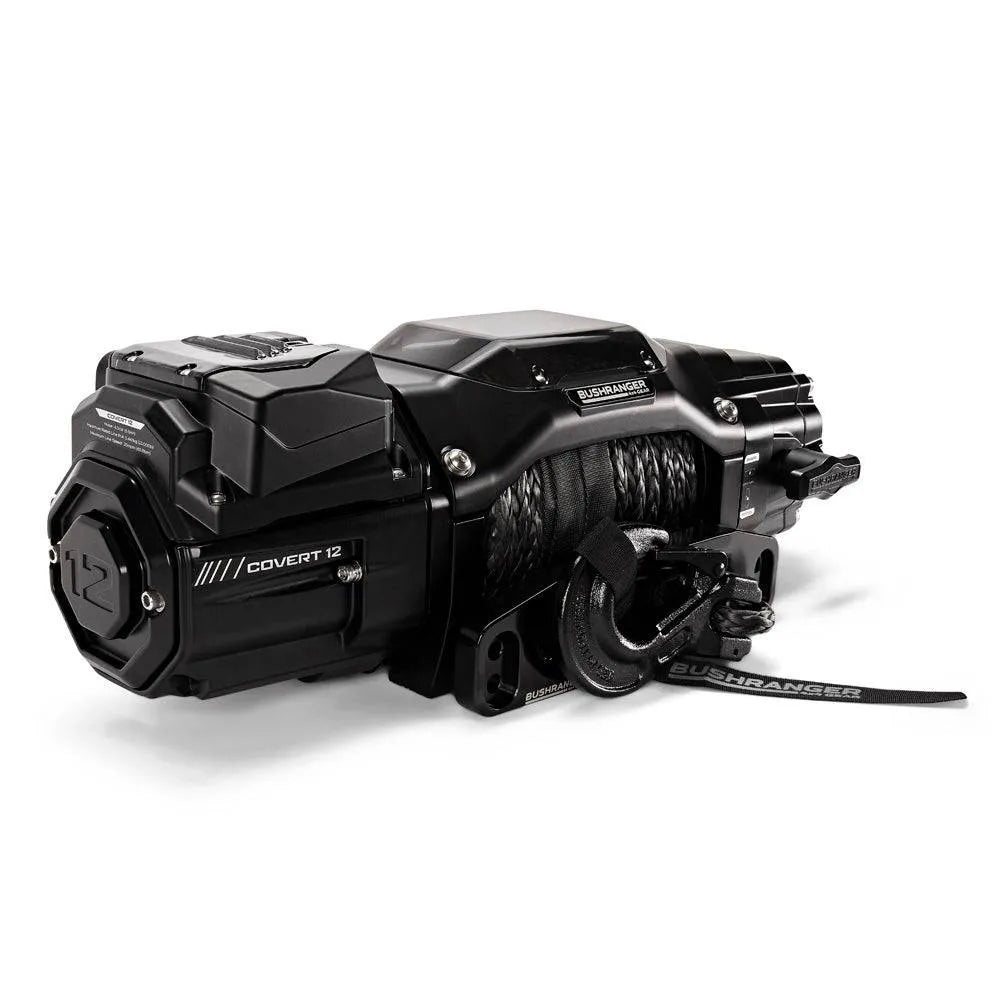

COVERT 12 winchS Bushranger | 12V | 5443 KG | Synthetic

COVERT 12 winchS Bushranger | 12V | 5443 KG | Synthetic

TECHNICAL SHEET (PDF File - Click here)

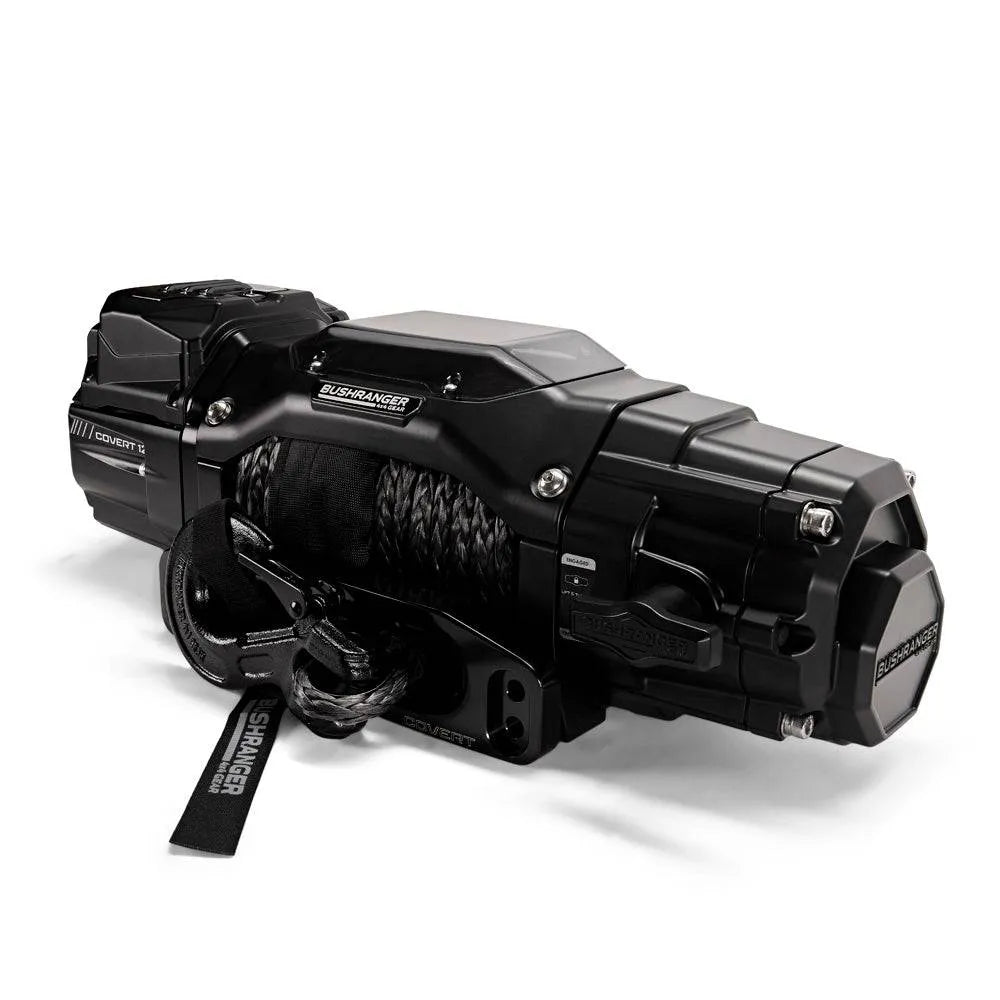

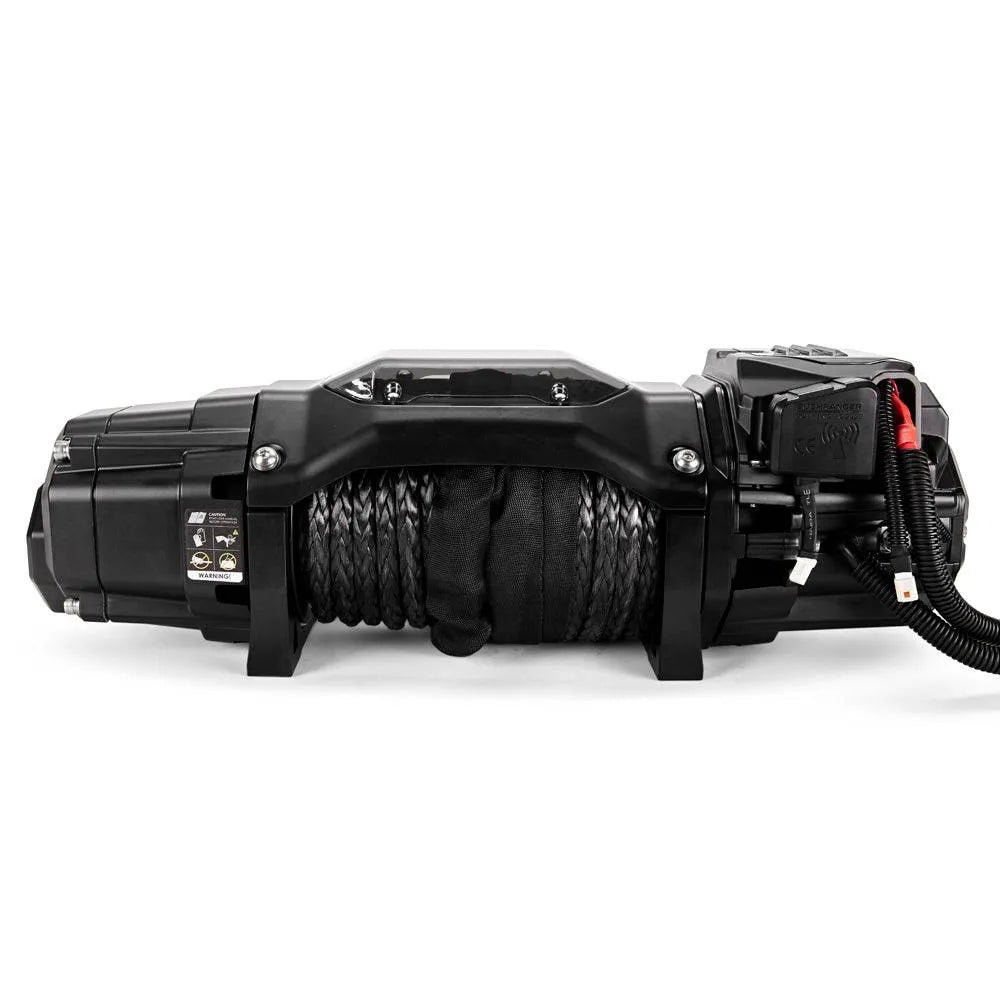

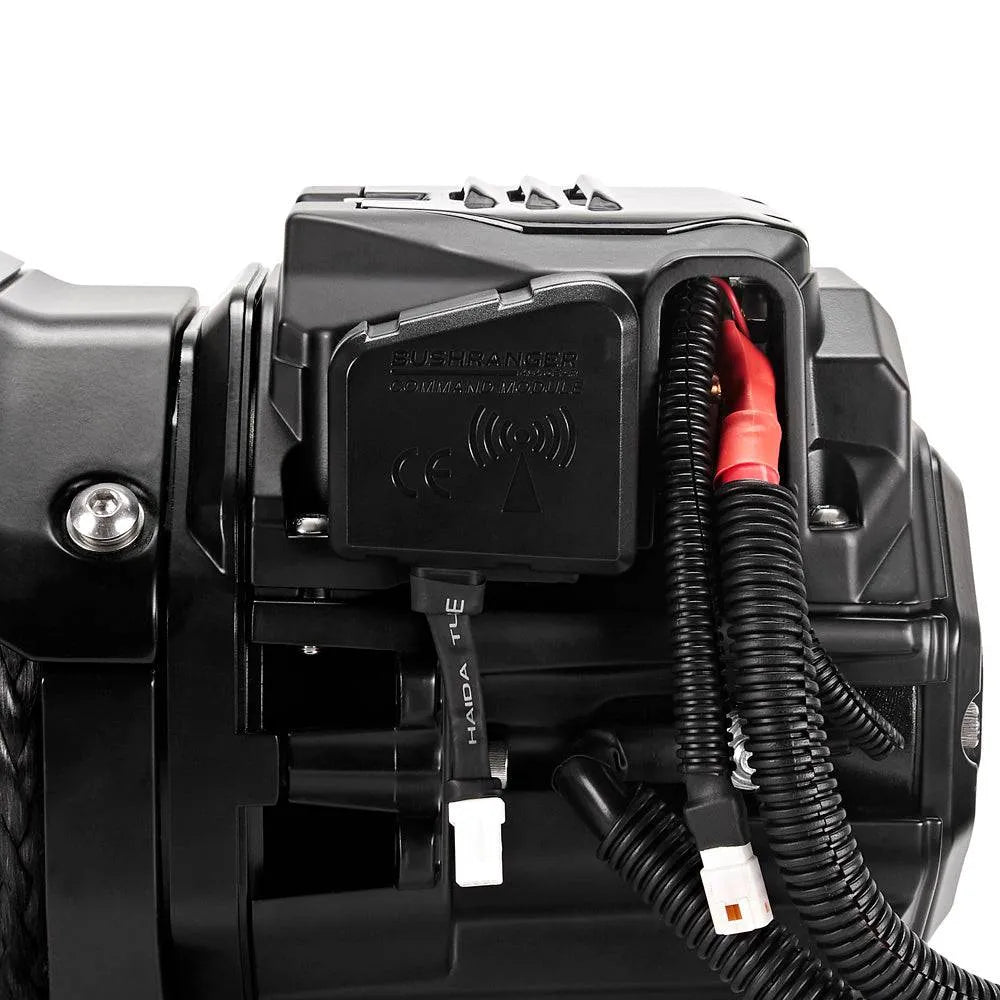

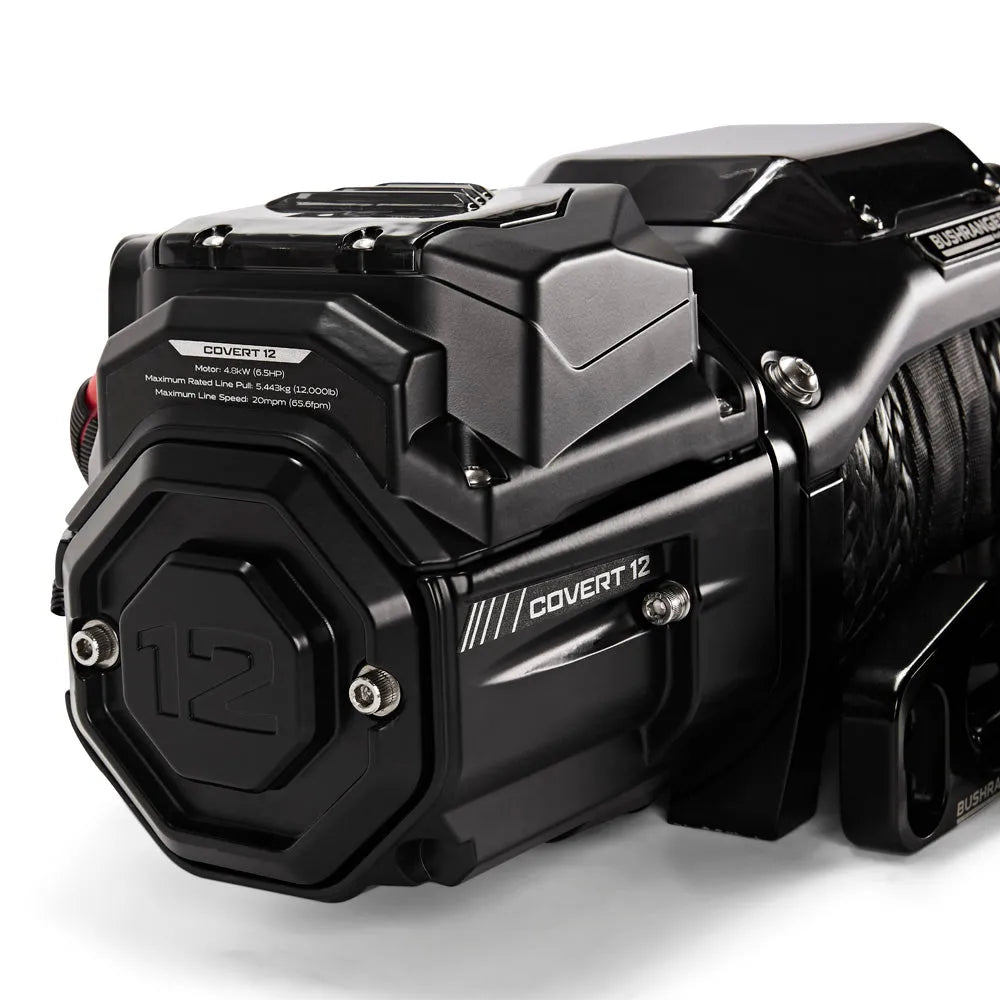

The COVERT synthetic rope winch from Bushranger revolutionizes the world of 4X4 equipment. Equipped with a ultra-efficient all-in-one engine control unit and one 12V 5.3hp motor, it is specially designed for off-road enthusiasts who are looking for both power and aesthetics. The first Australian designed 4X4 winch without an external control box, it integrates perfectly on a variety of 4x4 vehicles, providing a sleek appearance. refined and discreet.

Key Points:

• Frictionless braking system : Brake mounted on the gearbox, guaranteeing 100% load retention.
• 4-step gearbox : Hardened steel gears for maximum strength and increased durability.
• 12V 5.3P Adjusted Motor : Faster line speed with less power consumption.
• Design COVERT : Stylish and discreet aesthetics for harmonious integration.
• Quick and easy installation : Pre-wired, with multiple mounting options.
• Robust construction : Lightweight aluminum alloy housing with stain-resistant black powder coat finish.

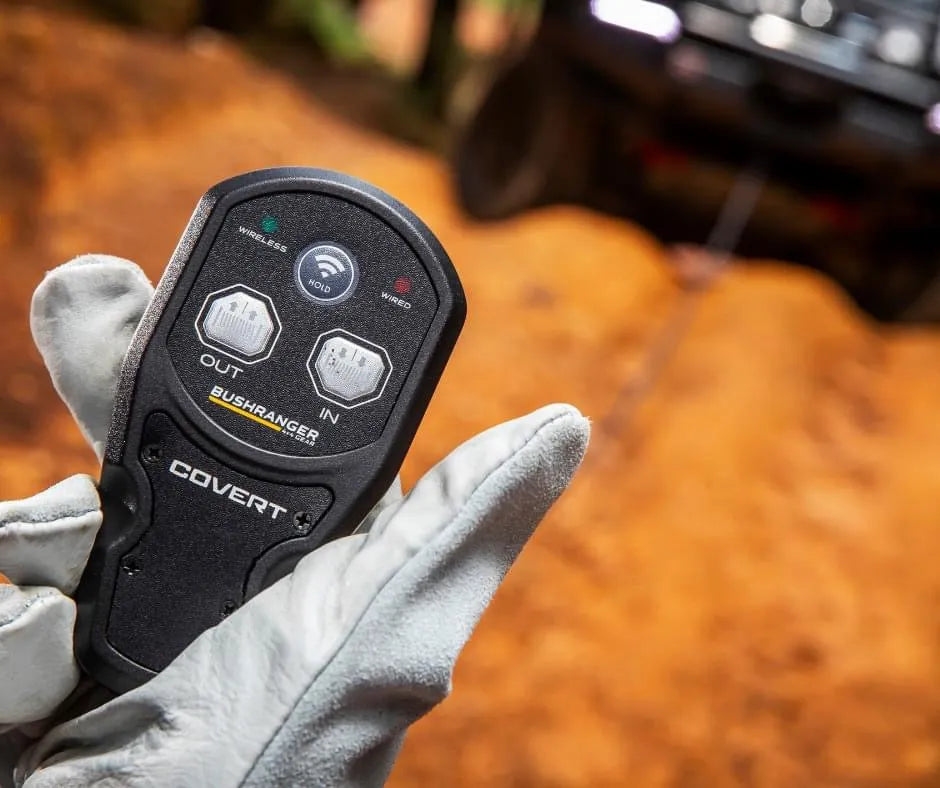

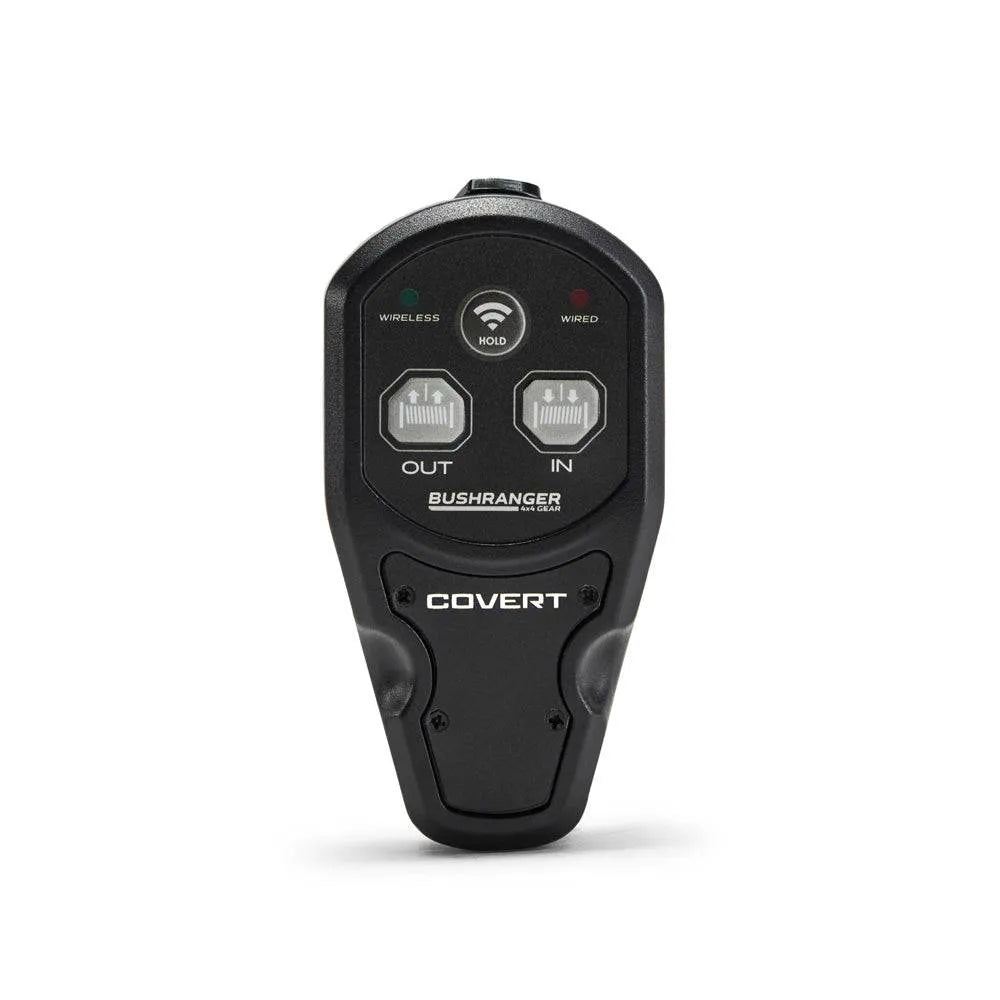

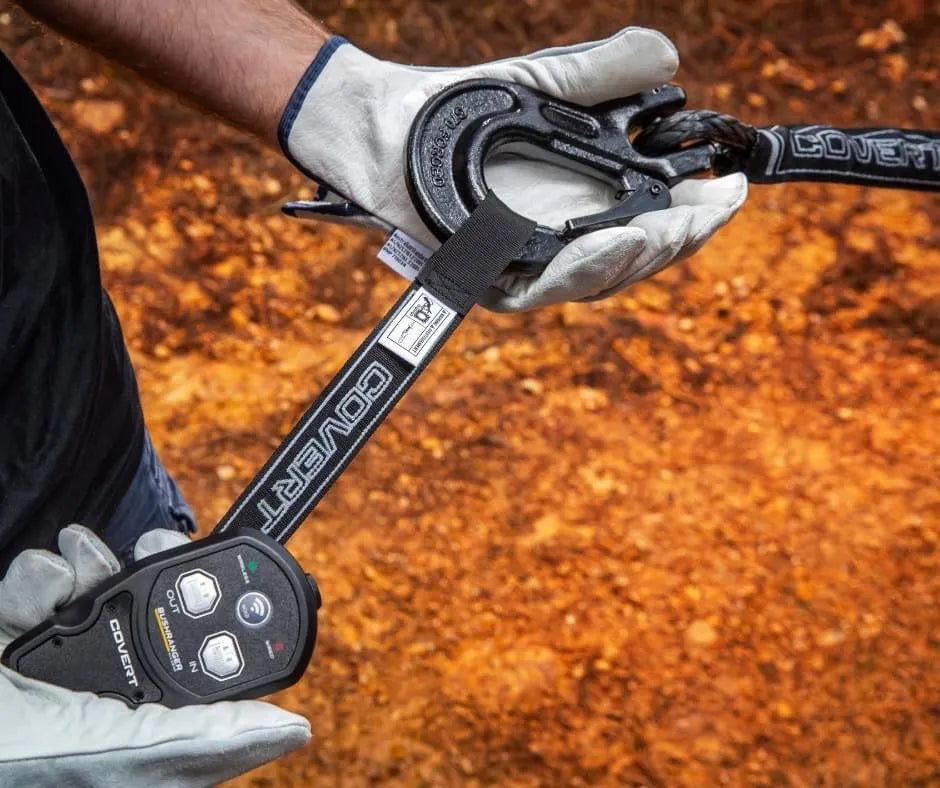

• Dual connection remote control : Water resistant, wireless (30m range) and wired (5m cable).

Technical Details :

• Dimensions : 597mm(L) x 208mm (l) x 202mm (H)
• Weight (INSTALLED): 33.5 kg
• Tensile Strength (1ST LAYER): 12,000 lb (5,443 kg)
• Engine : 4.3 kW (5.7 HP)
• Remote : Dual connection remote control (2 in 1)
• Gearbox : 2-stage planetary and 2-stage pinion gear
• Brake : Friction brake mounted on gearbox

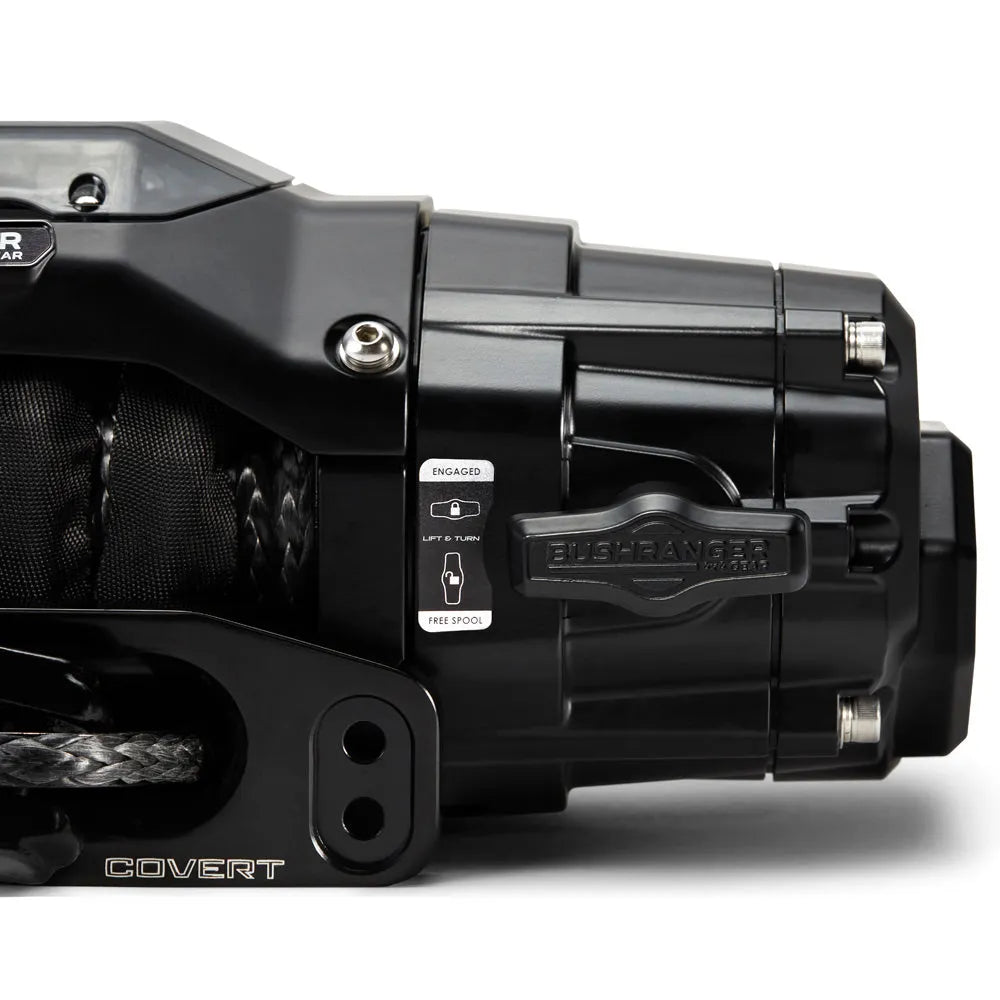

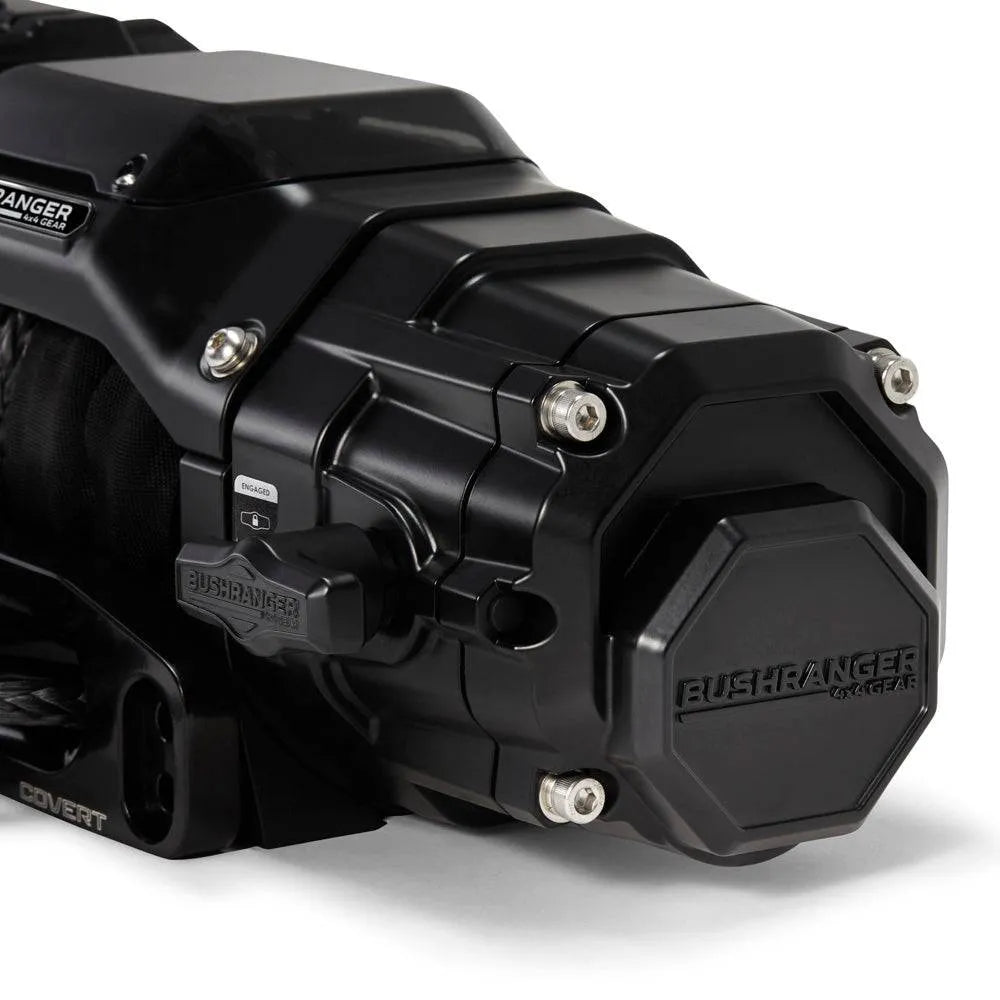

• Clutch : Rotating ring - Lever raised and turned
• Cable Type : Black synthetic rope 11mm diameter x 24m

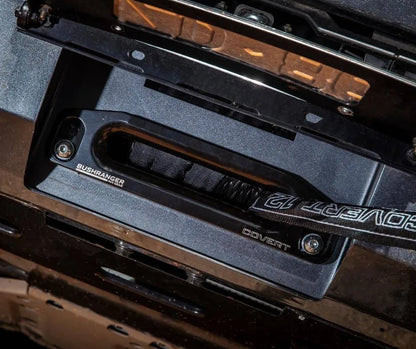

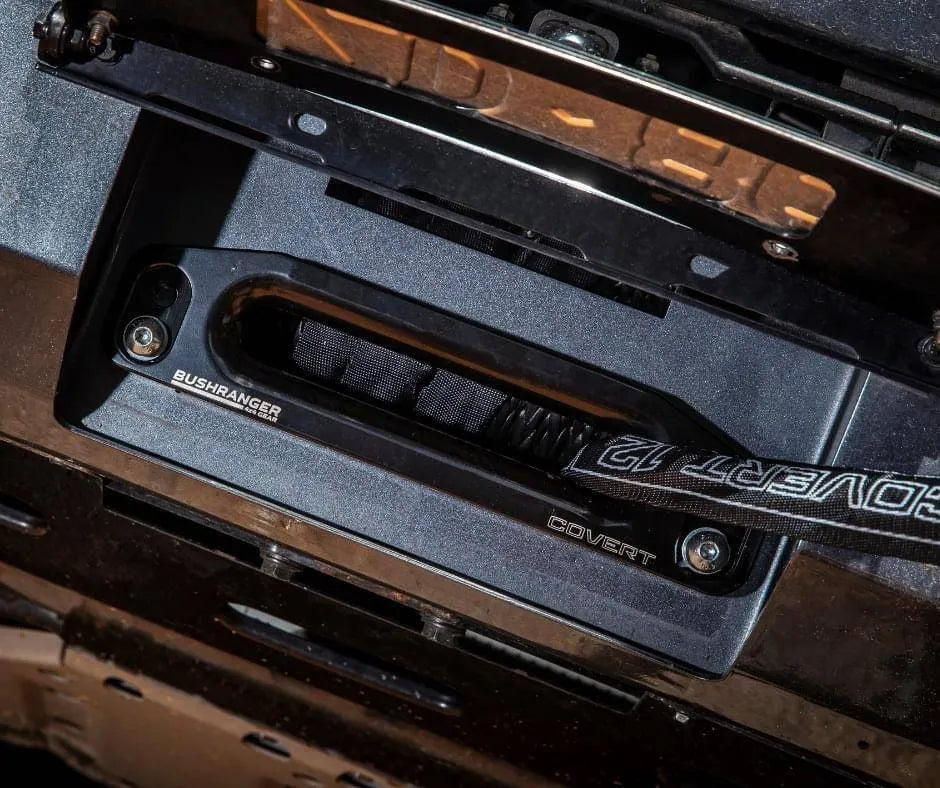

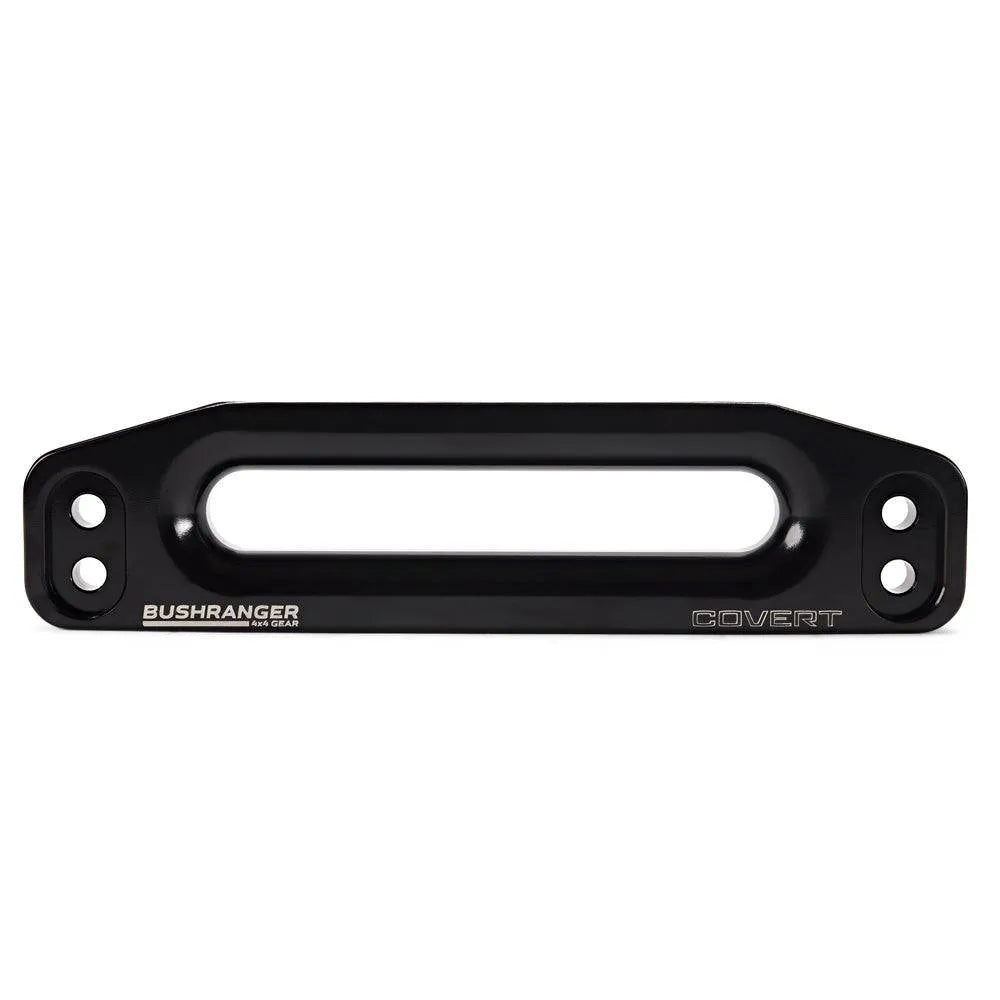

• Cable guide : Aircraft grade aluminum cable guide
• Finishing : Electrophoretic powder coated satin black finish
• WATERPROOFING : IP68 winch motor and gearbox, IP66 remote control
• GUARANTEE : Limited lifetime warranty (7 years on electrical components)
• CERTIFICATIONS : THIS

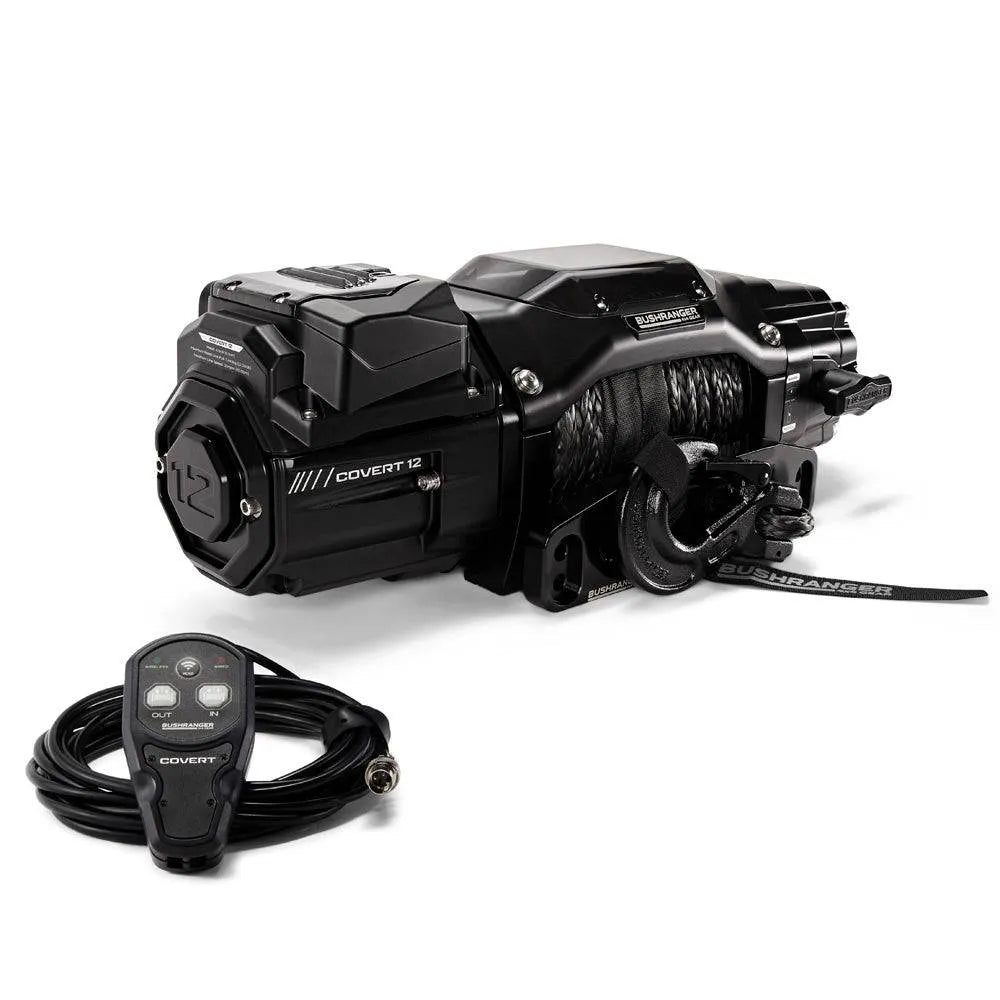

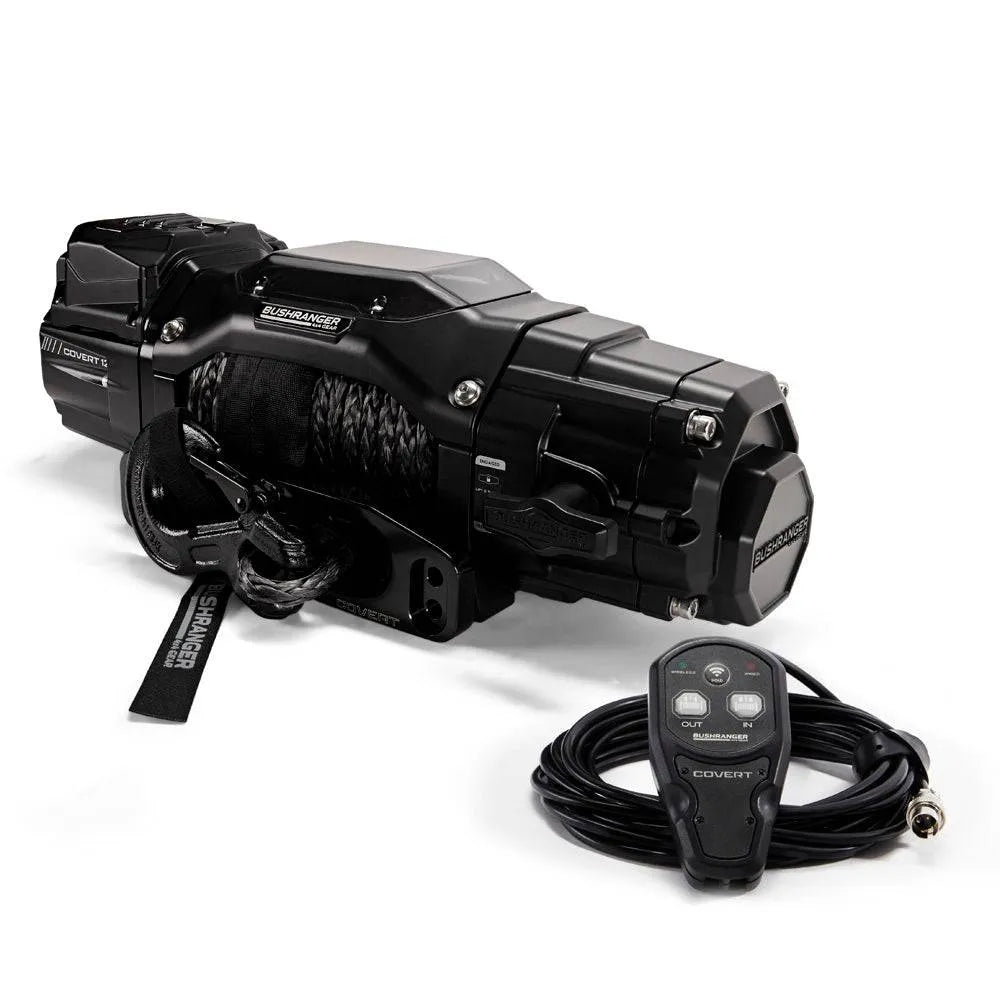

THE KIT INCLUDES :

• Treuil Bushranger COVERT 12 000LB (=5443kg)

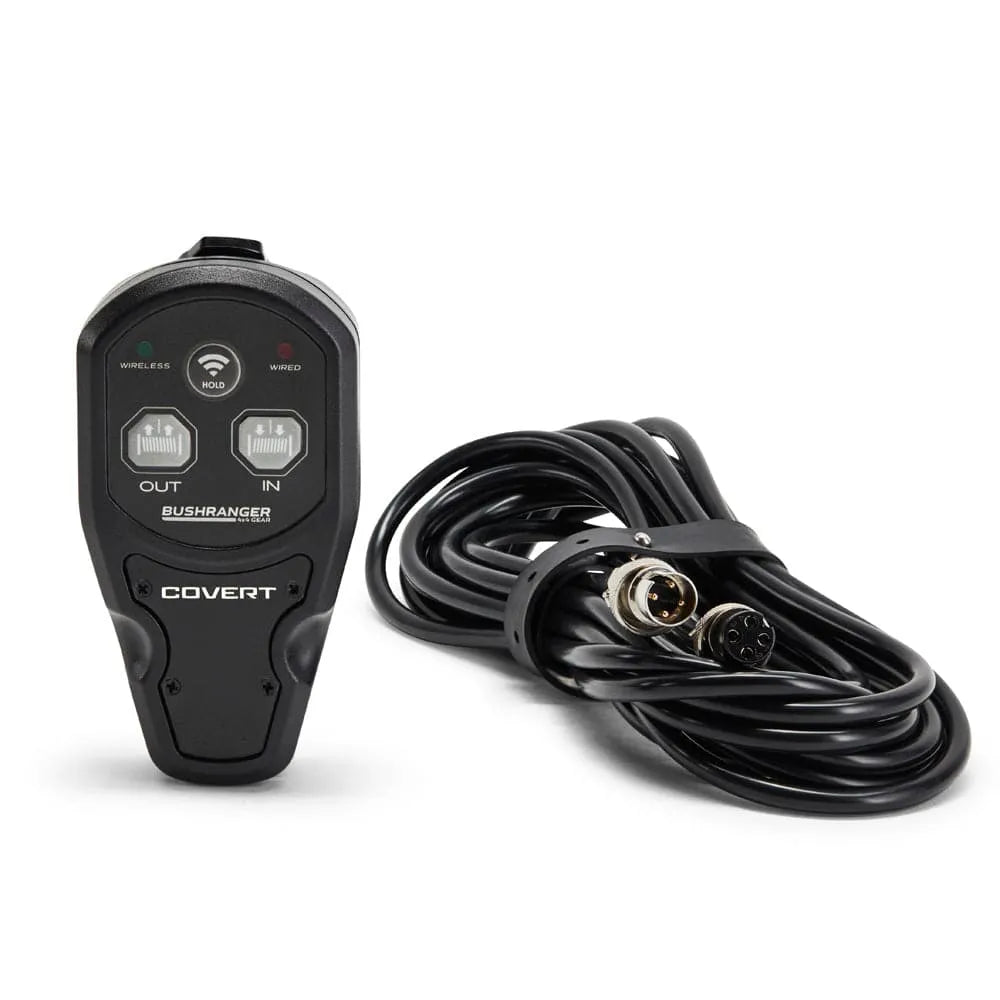

• Dual connection wireless remote control with 5m control cable

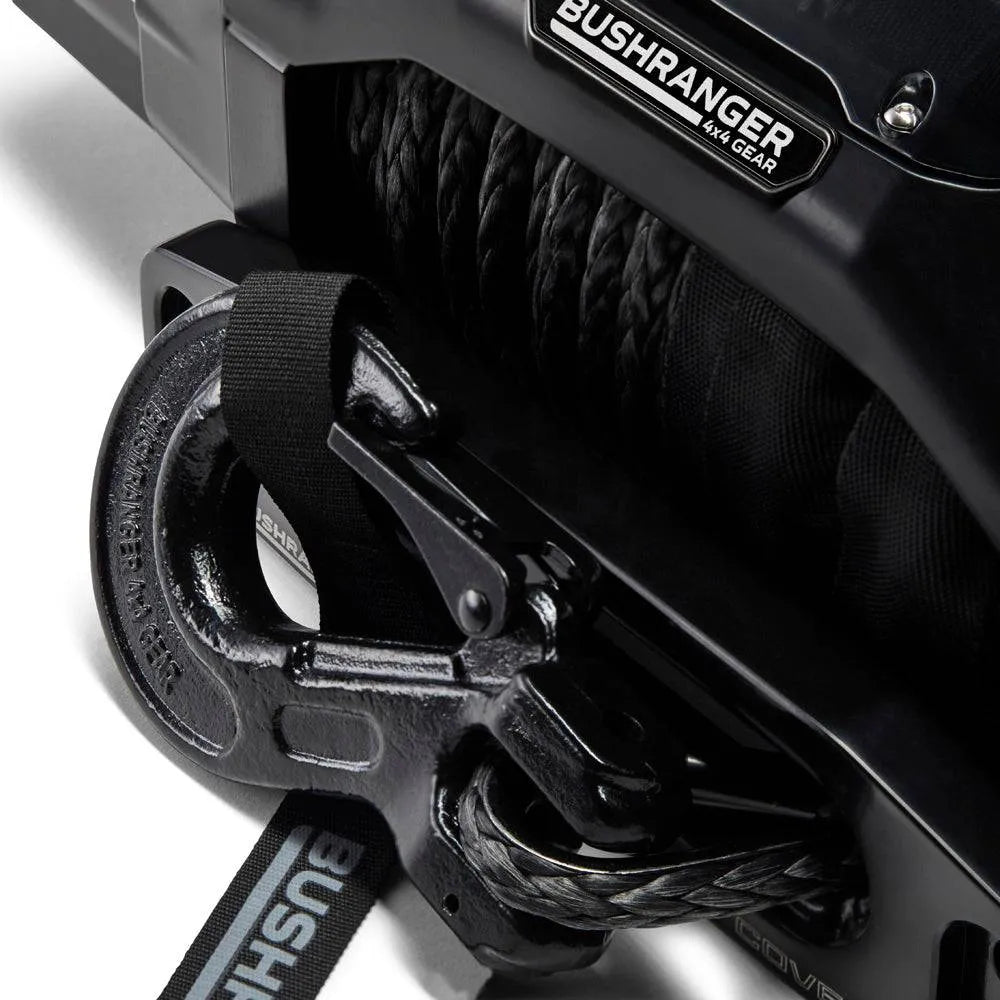

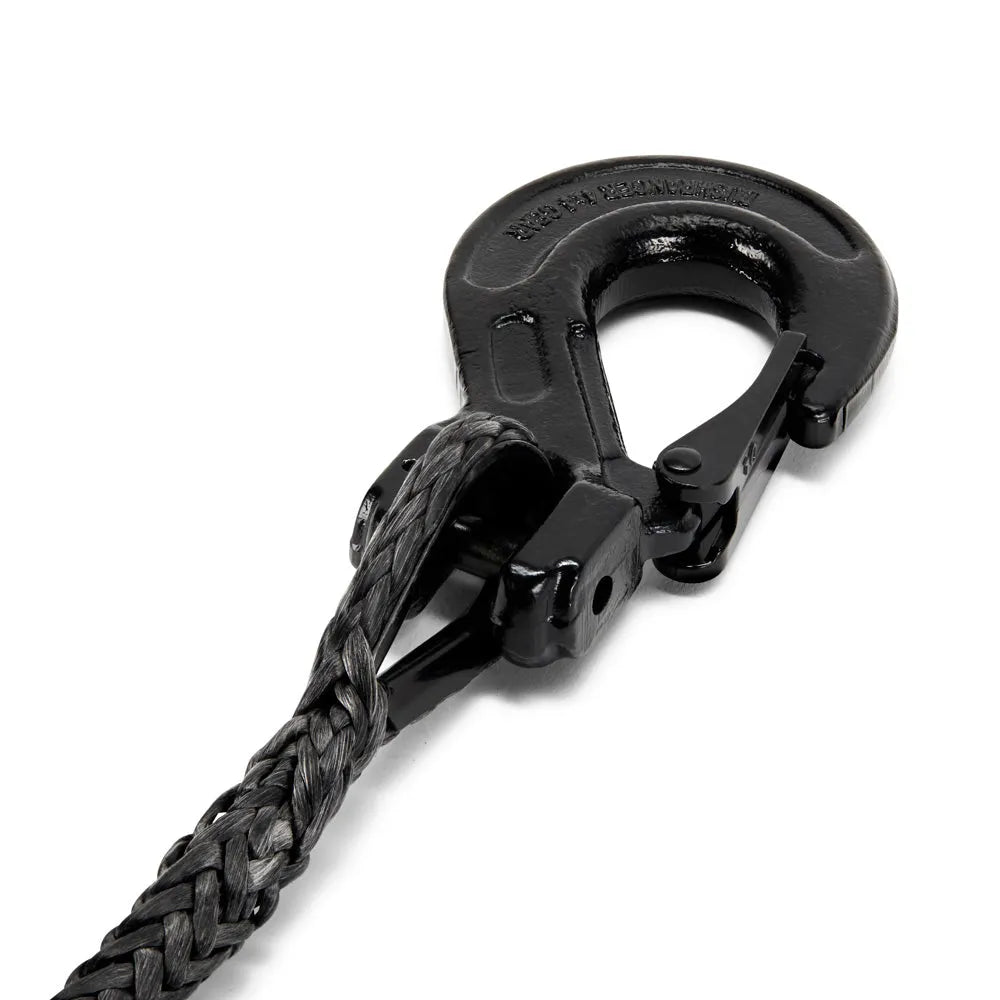

• Black forged hook, black aluminum cable guide
• Forged silver plated hook, stainless steel cable guide
• Main power isolation switch and remote control socket
• Heavy-duty mounting hardware
• Heavy gauge wiring pre-installed

Designed and tested in Australia, this winch guarantees reliability and longevity even in the most extreme conditions. For demanding adventurers, the COVERT winch from Bushranger is the perfect choice.
