Replacement Tank 128L/143L LONGRANGER Isuzu D-Max N60 2020+

Maximize the range of your Isuzu D-Max N60 for long-distance adventures

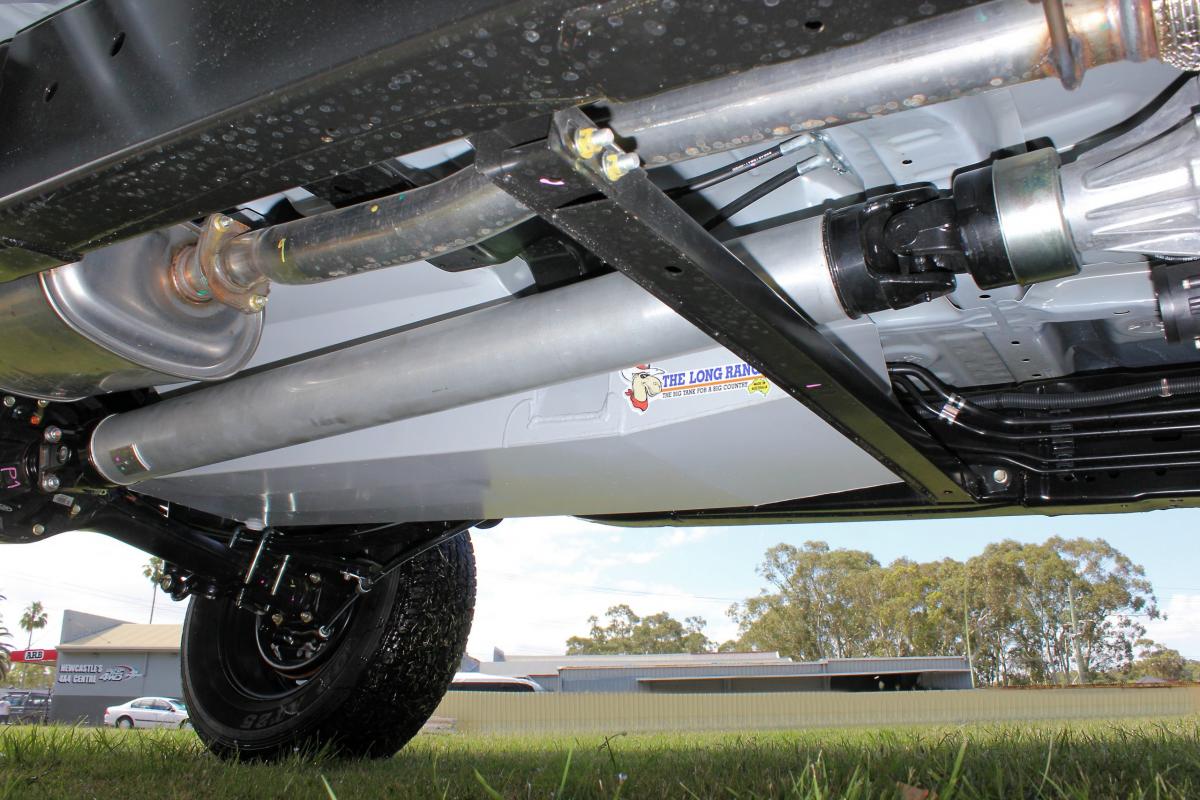

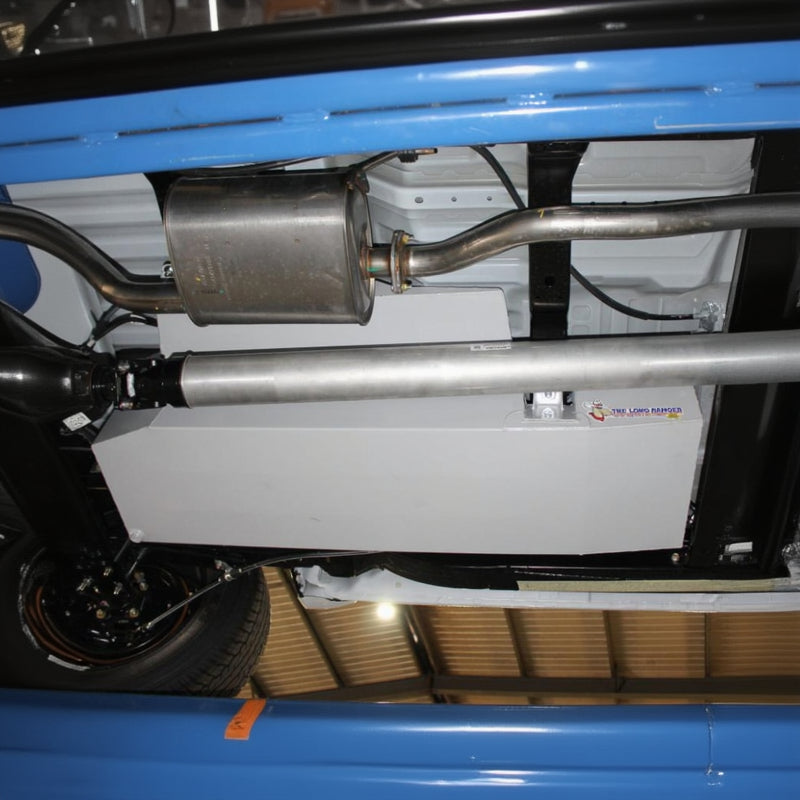

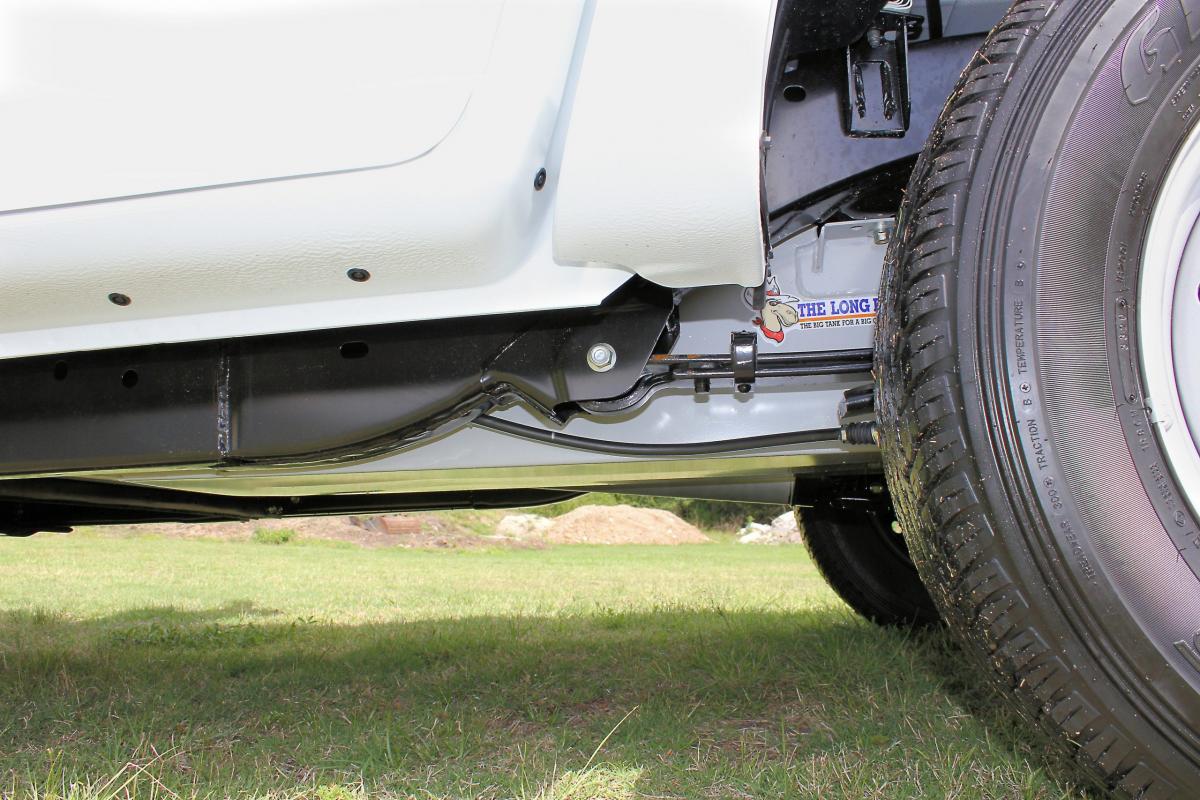

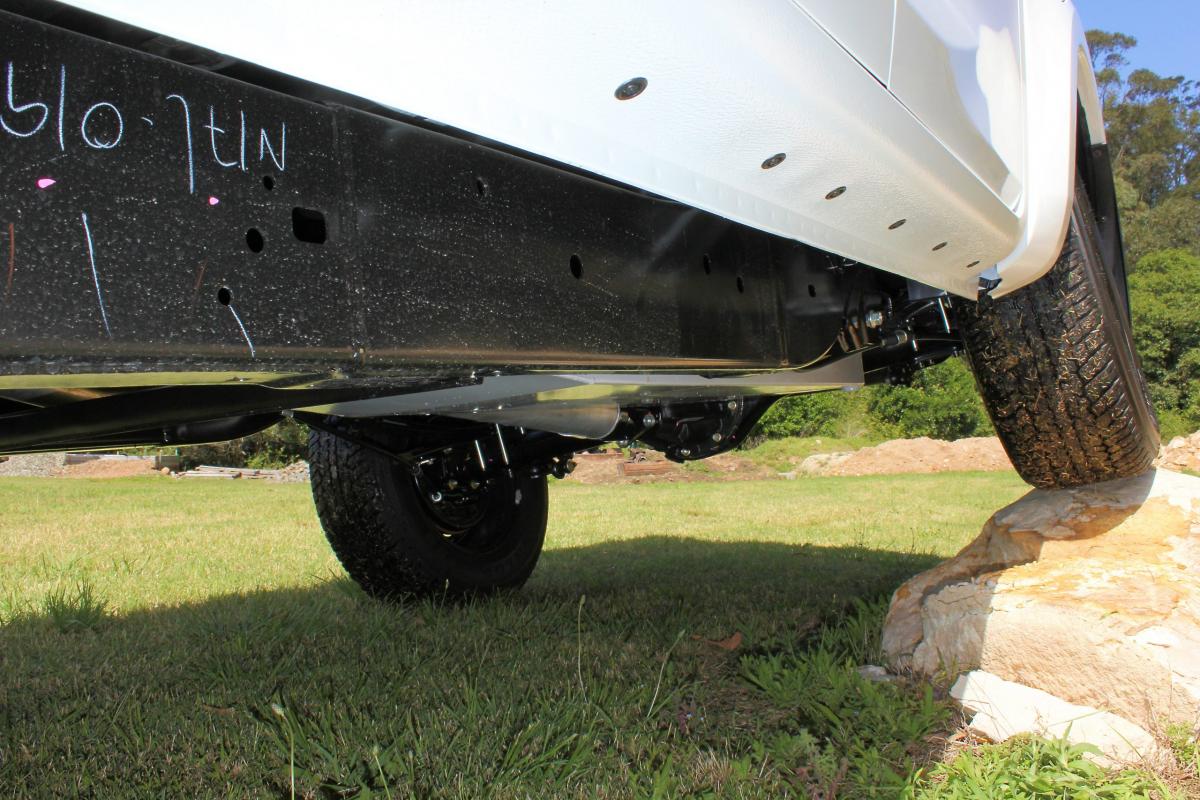

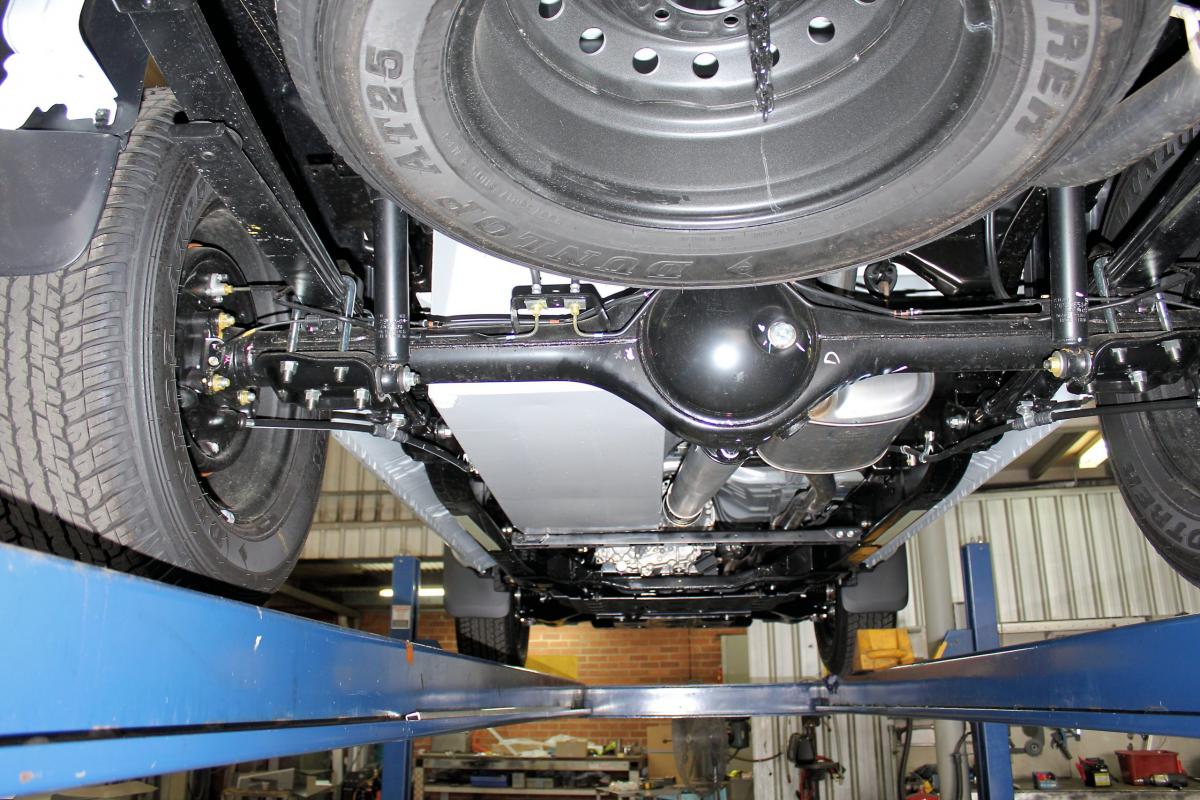

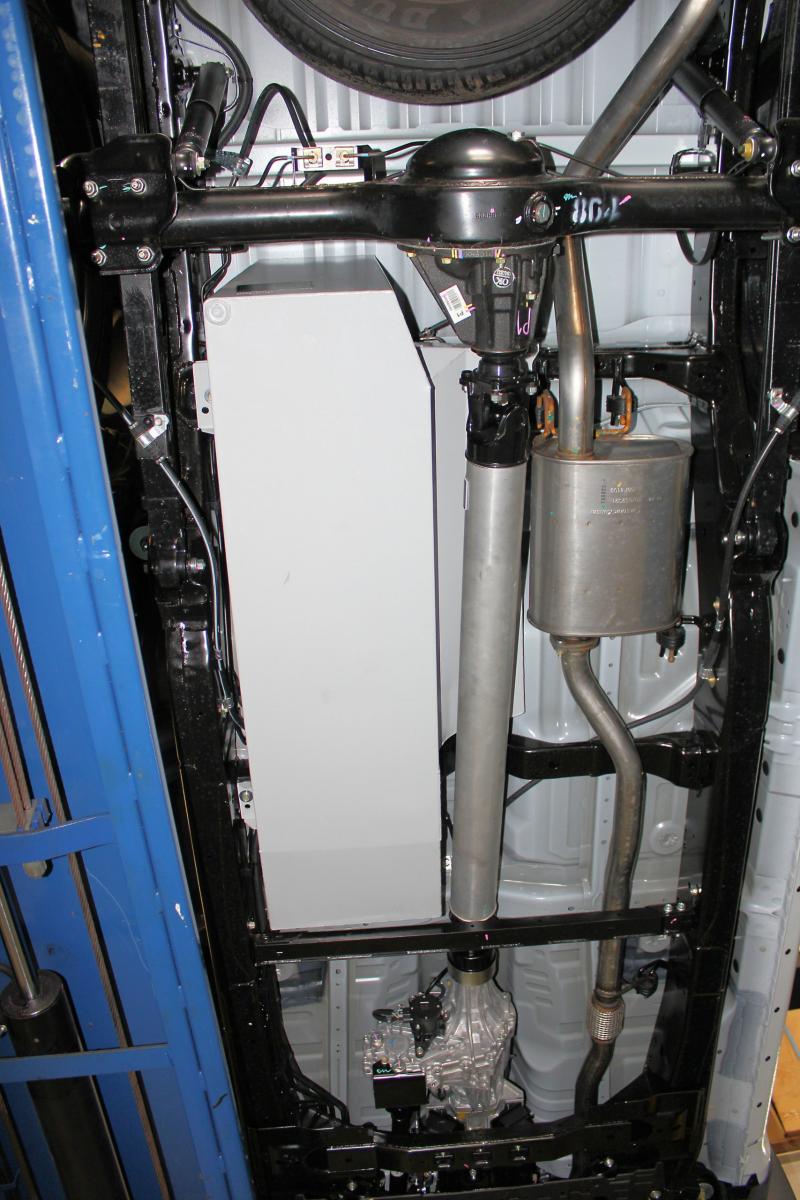

The new Isuzu D-Max N60 is an exceptional base for raids, but its original 76-litre fuel tank quickly limits your ambitions on isolated crossings. LONGRANGER This high-performance replacement tank is available in two impressive capacities: 128 liters or 143 liters. By directly replacing the original unit on the left side between the axles, this tank cleverly utilizes the space above the driveshaft. This design not only nearly doubles your fuel capacity but also improves ground clearance and breakover angle compared to the stock plastic tank—a major advantage for off-roading.

State-of-the-art engineering in aluminized steel for total strength

Safety and durability are at the heart of the design LONGRANGERMade from 2 mm (14 gauge) aluminized steel, this tank is far more resistant to stone impacts and abrasion than plastic or lightweight aluminum models. The interior is fully baffled to prevent sudden fuel mass transfer when cornering or on steep inclines, ensuring increased vehicle stability. In addition, each unit is equipped with a rollover safety valve. Coil spring, an essential protection for travelers exploring steep terrain where the risk of tipping over is present.

Professional installation and integration with original systems

Installing this replacement tank is designed to be quick and easy, with an estimated assembly time of just 2.5 hours. The kit includes pre-drilled mounting brackets for stress-free, direct attachment. While the "Range Before Running Out" (RBO) display on your trip computer will no longer function due to the change in volume, your original fuel gauge remains fully functional. To ensure accurate readings, LONGRANGER provides a direct replacement float arm, thus avoiding any DIY modification or welding on the original sensing unit.

Detailed list of kit components

• High capacity tank (128L or 143L (depending on option) in 2 mm aluminized steel
• Complete assembly kit ready to install (screws and reinforced brackets)
• Specific replacement float arm for the Isuzu gauge
• Anti-rollover safety valve Coil spring integrated
• Mounting brackets with precision drilling
• Illustrated step-by-step assembly instructions
• Shipping weight: approximately 43 kg (for model 128)L)
• 3-year manufacturer's warranty against all manufacturing defects

Do I need to modify my exhaust system to install this tank?

No, no modification to the exhaust system is necessary for the Isuzu D-Max N60. The tank has been designed to perfectly fit the shape of the chassis and leave the necessary space for the passage of mechanical components, including the driveshaft and the original exhaust.

Does the extra weight affect the suspension of my D-Max?

The addition of a 128 tankL or 143L It uses part of your vehicle's payload, just like any other accessory (bull bar, camper shell, etc.). If you often travel with a full tank of gas and a lot of gear, we recommend upgrading to a reinforced suspension kit, such as the Old Man Emu, to maintain optimal vehicle balance and superior ride comfort.
